FTS motor control system

Product Introduction:

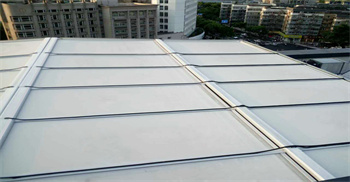

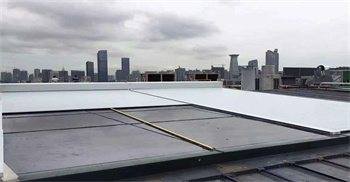

The FTS system is called "Fabric tension system" and consists of two FTS motors and an electronic control box. The operating tension and final tension are adjusted by an electronic control box. When the system stops, the control box stops and holds the main motor while reversing the auxiliary motor to gain final tension. FTS dual motor system is applied to large area sunshade products such as indoor canopy curtain, aluminum alloy canopy and outdoor canopy

Size limitation:

*(Applied to different products, different configurations, sizes will vary)

Consult immediately Get a quote

Product characteristics

Product classification

Motor selection

Relevant case

Product characteristics

· Waterproof motor, protection class IP64

· Independent braking, precise mechanical positioning mechanism, quiet operation

· Limit laps 55

· Working time: 10 minutes

· Can realize local switch, remote control, and control mode matching with smart home

· Products can be customized according to customer needs

Product classification

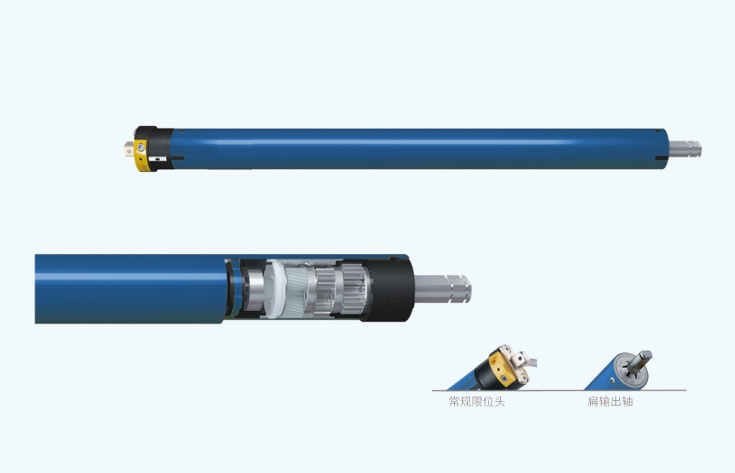

FTS-35 series tubular motor

Rated torque	Transmission speed	Rated voltage	Rated power	Rated current	Protection class	Working hours
10N.n	17rpm	230V	180W	0.8A	IP44	10min

FTS-45 waterproof tubular motor series

Rated torque	Transmission speed	Rated voltage	Rated power	Rated current	Protection class	Working hours
55N.n	17rpm	230V	250W	1.089A	IP65	10min

FTS-59 series tubular motor

Rated torque	Transmission speed	Rated voltage	Rated power	Rated current	Protection class	Working hours
80N.n	17rpm	230V	400W	1.8A	IP44	10min
110N.n	9rpm	230V	460W	2A	IP44	10min

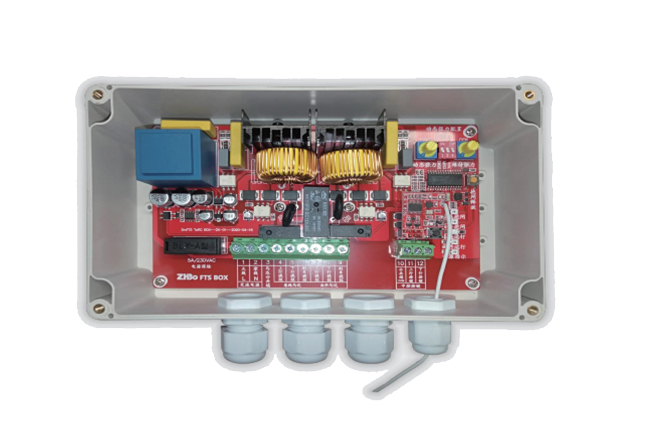

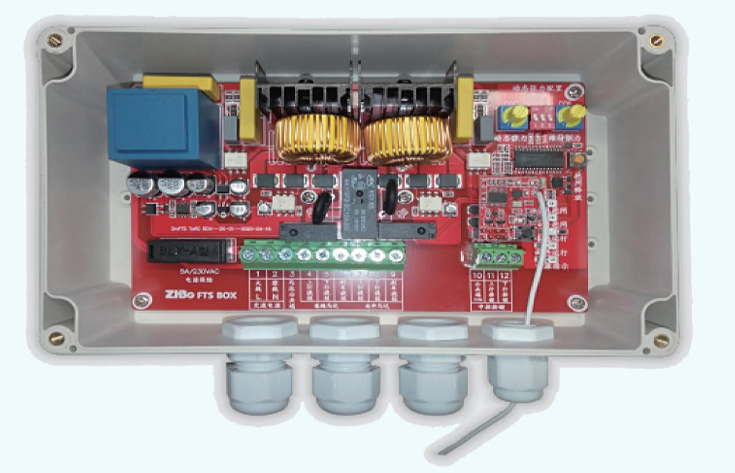

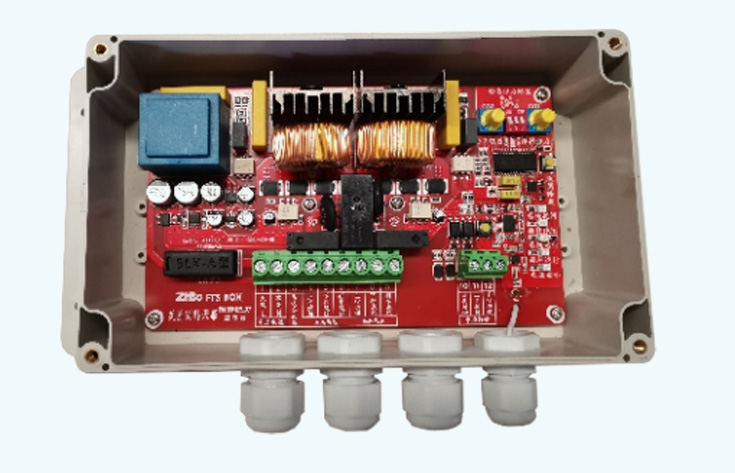

FTS control box, FTS control box (built-in receiver)

Box color	Dimension	Continuous output time	Voltage	Voltage range	Power frequency
灰	240x120x65mm	6	220-240	198-255	50/60
Operating temperature	Relative humidity	Fuse wire	Motor control output	Motor control output	Class of protection
0-40°C	25°C-90%	5A-230	5A	5A	IP56

Motor selection

Select different types of motors according to the application products, and can be customized according to demand

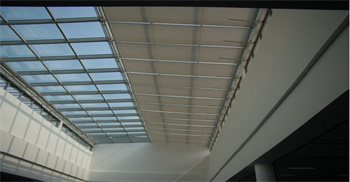

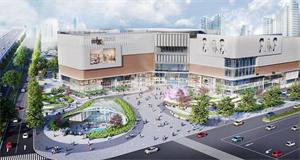

Relevant case

<a href="/index.php?m=home&c=View&a=index&aid=427&lang=en&admin_id=1"> Wuhan Academy of Agricultural Sciences </a>

<a href="/index.php?m=home&c=View&a=index&aid=378&lang=en&admin_id=1"> Changsha IFS International Financial Center </a>

<a href="/index.php?m=home&c=View&a=index&aid=376&lang=en&admin_id=1">Shenyang Zhonghai Ring Yu City</a>

<a href="/index.php?m=home&c=View&a=index&aid=486&lang=en">Nanjing China Resources Vientiane</a>

<a href="/index.php?m=home&c=View&a=index&aid=429&lang=en&admin_id=1"> Ningjin County People's Court </a>

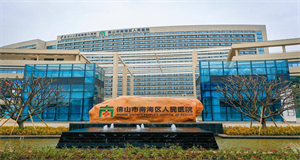

<a href="/index.php?m=home&c=View&a=index&aid=423&lang=en&admin_id=1"> Foshan Nanhai People's Hospital </a>
