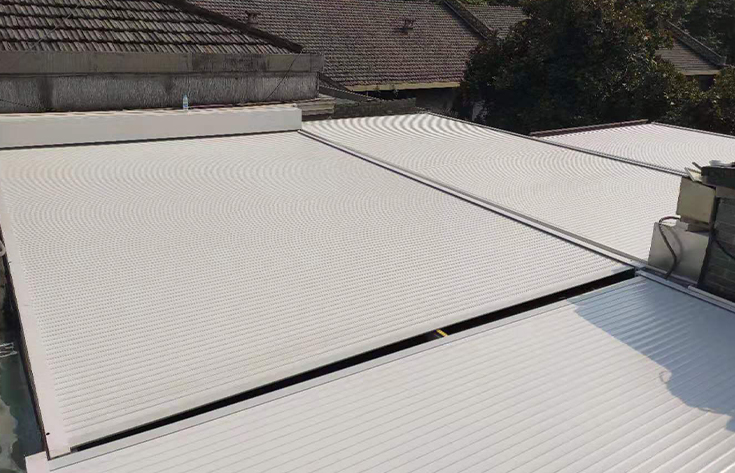

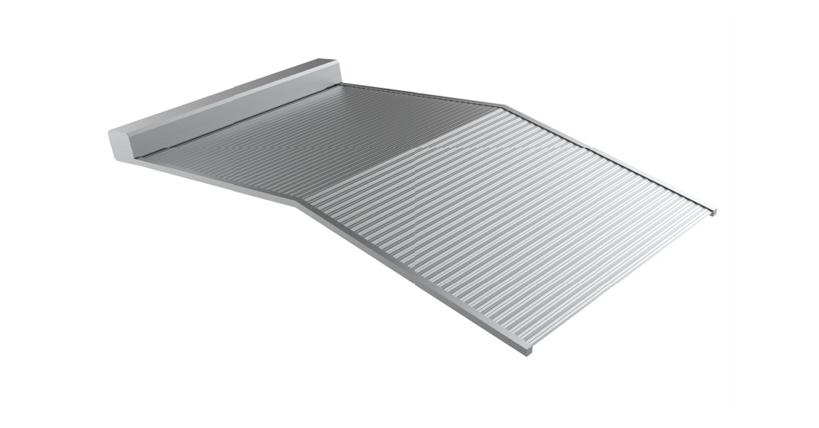

Outdoor aluminum canopy
Product characteristics

· Foam curtain sheet and extruded curtain sheet are selected for strong wind resistance and security
· Outdoor installation, good thermal insulation effect;
· The operation is driven by dual motors, and the system is stable
· Convenient installation, finished products shipped without on-site debugging
· The products can be curved, trapezoidal, triangular and other shaped design and processing;
· Local switch, remote control, wind and rain control and more intelligent control methods can be realized.
· Aluminum color selection is rich and can be customized to meet the needs of different building exterior decoration

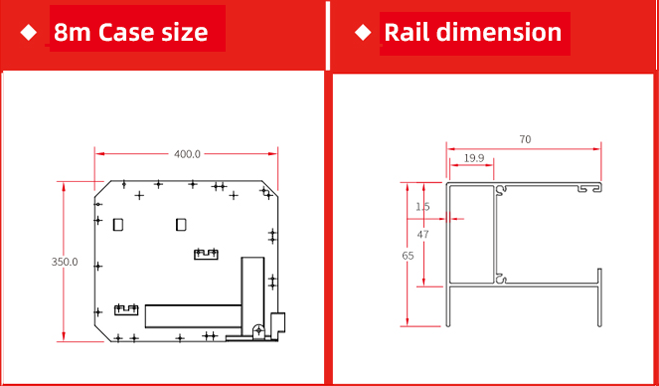

Fitting parameter


| Model number | ALR39 | ALR45 | ALR55 |
| Material | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Density | 56kg/m³ | 100kg/m³ | 300kg/m³ |
| Nominal thickness | 8.5㎜ | 8.7mm100kg/m³ | 12.3mm |
| Maximum width | 1800㎜ | 2500mm | 3500mm |
| Maximum production height | 3000㎜ | 3000mm | 3800mm |
| Maximum service area | 4㎡ | 6㎡ | 10㎡ |
| Overlay quantity | 39㎜ | 45㎜ | 55mm |
| Surface treatment mode | Weather resistance and scratch resistance | Weather resistance and scratch resistance | Weather resistance and scratch resistance |
| Blade roots per meter | 25.6 | 22.2 | 18 |
| There is no light vent | selectable | selectable | selectable |

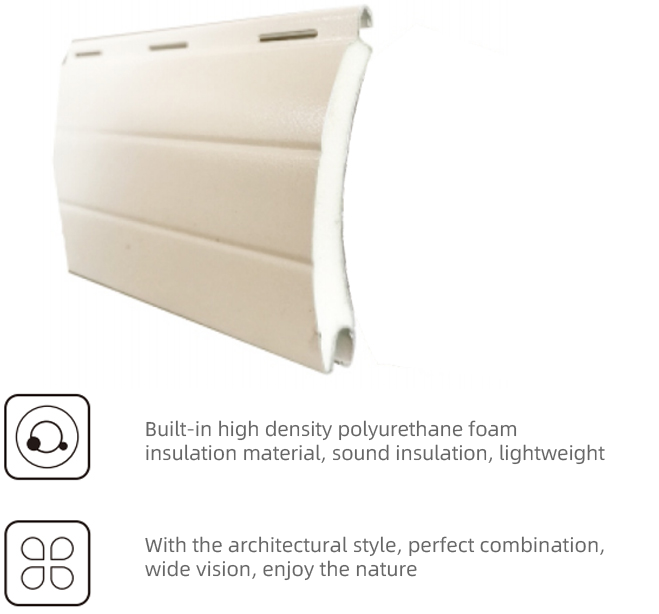

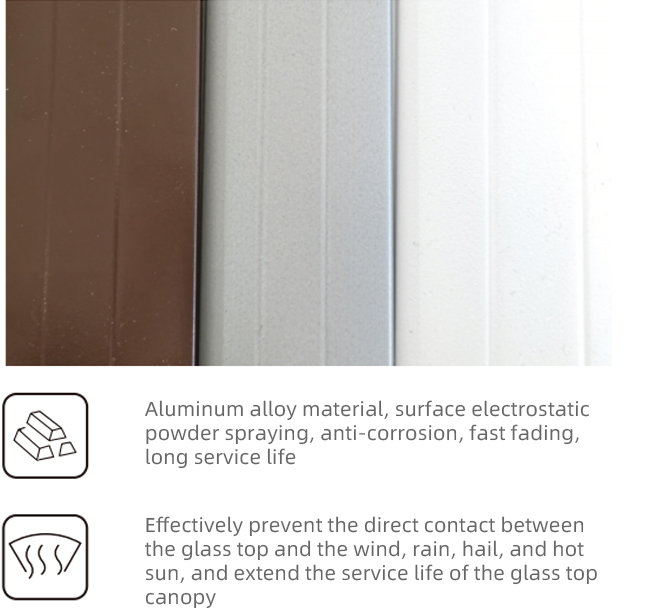

Material selection
