Electric advertising hooks

Product Introduction:

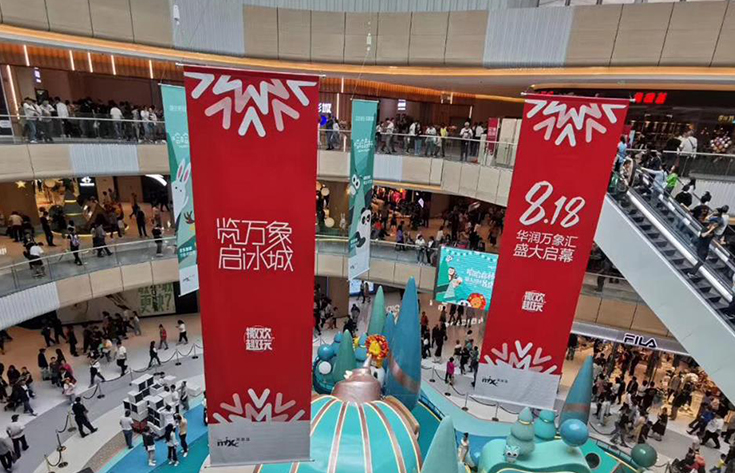

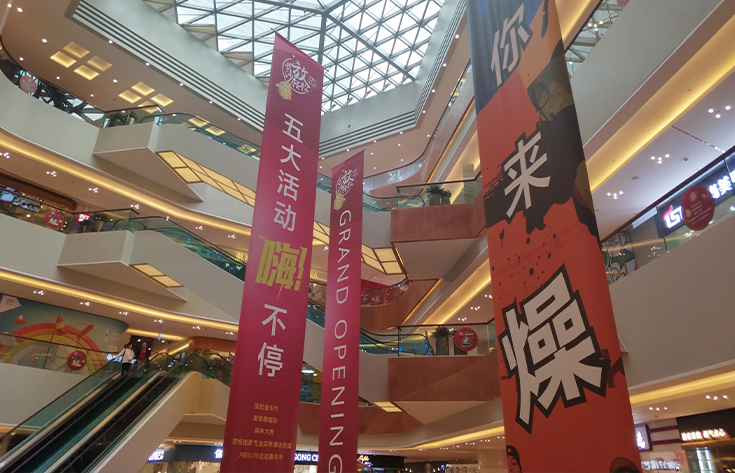

Electric advertising hooks are mainly used in shopping malls and other places of banner hanging, lighting hanging, decorative hanging, etc., only the staff to operate the remote control, can easily solve the problem of advertising banner lifting and replacement, can play a role in expanding the shopping mall advertising area, as well as decorating/setting off the atmosphere of the shopping mall.

Size limitation:

Customized according to customer needs

Product characteristics

Product classification

Product characteristics

Relevant case

Recommended product

Product characteristics


· Smart Expo makes a special itinerary for each product, so that customers can use it safely.


· The product uses the control system with the point function and adopts the wired control mode to give you the operation space you want.


· All motors use copper core. Pure copper wire motors are safer, more durable and quieter.


· Ultra-quiet deceleration system, high transmission efficiency, low noise, compact structure, square appearance, easier to install and fix.


· Stopper: equipped with mechanical stopper, when the stopper plate touches the stopper, the lifter will automatically stop operation.


· Dual safety Settings, overload protection and anti-topping Settings


· The product model is complete and can be customized to meet the lifting needs of different heights and weights



Product classification

Model numberRated lifting weightLifting heightVoltage frequencyInput powerInsulation classRotational speedWork quotaClass of protection
TM-PA500250/500Kg40m220V/50Hz900WB11420%10MINIP40
TM-PA1000500/1000Kg40m220V/50Hz1300WB11420%10MINIP40




Model numberRated lifting weightLifting heightVoltage frequencyInput powerInsulation classRotational speedWork quotaClass of protection
TM-RV500500/1000Kg40m380V1.1/0.75KWB11420%10MINIP40
TM-RV10001000/2000Kg40m380V3KWB11420%10MINIP40




Product characteristics

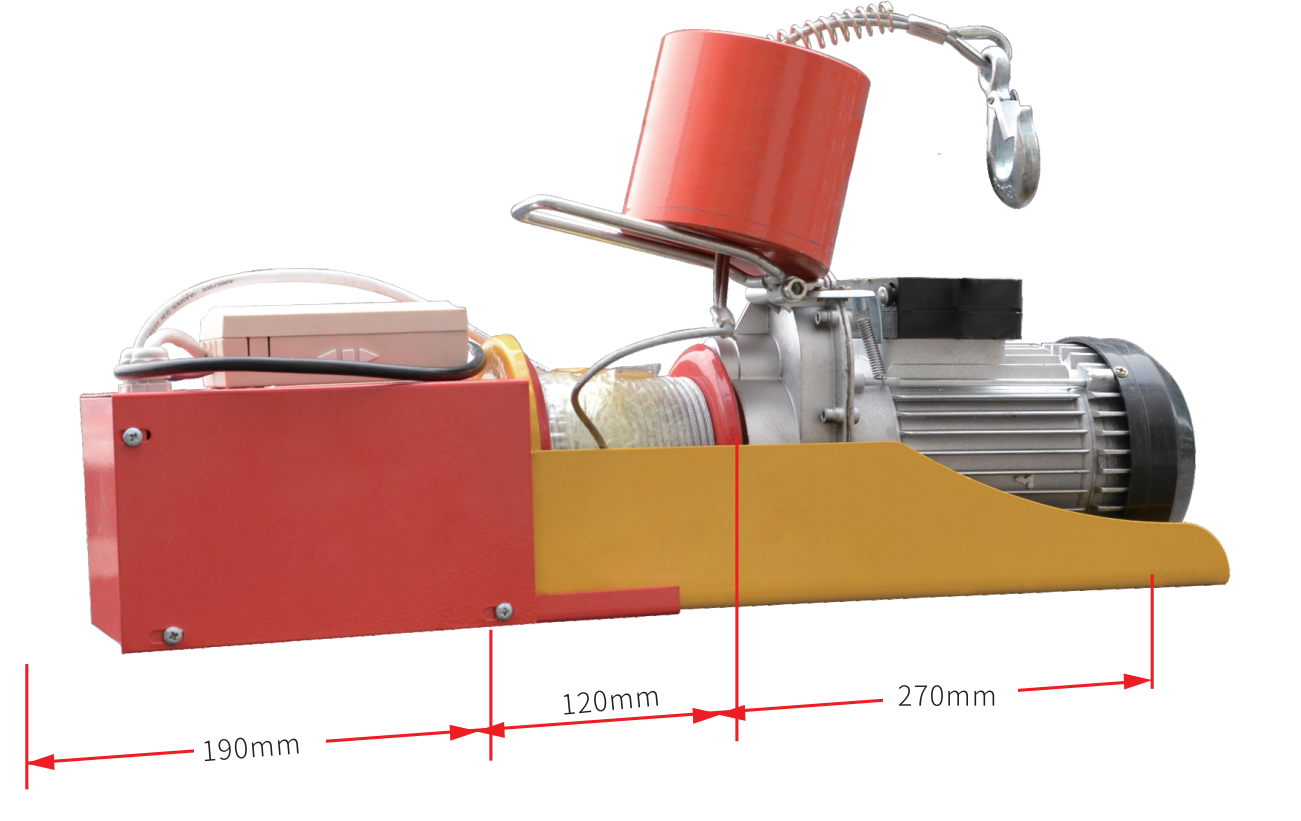

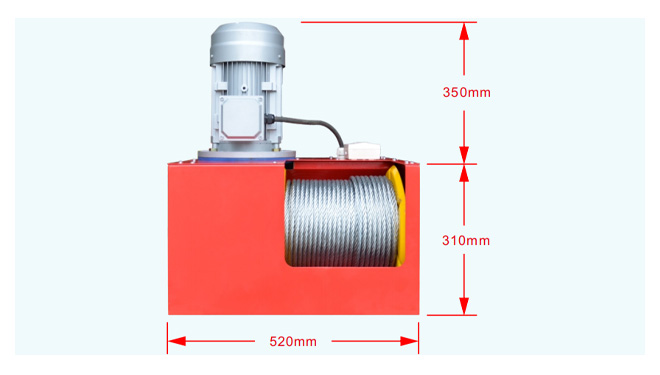

    01 High-quality pure copper motor02 Thick anti-winding wire rope03 Counterweight iron04 Reversing wheel05 Power conversion system06 Dedicated stepping transmitter
    Stable performance, high working efficiency, lifting strength, long working time, easy and effortless.Strong and durable, strong load-bearing force, use time increased by more than 20, wear resistance is not easy to break.Use anti-winding steel wireThe wheel concave design, and the groove is deep, the pulley operation can effectively prevent the rope from hopping, so that the operation is more stable.Precision turbine gear box (over load never slide) patented products, low noise, smooth operation, safe and reliable braking, long service life
